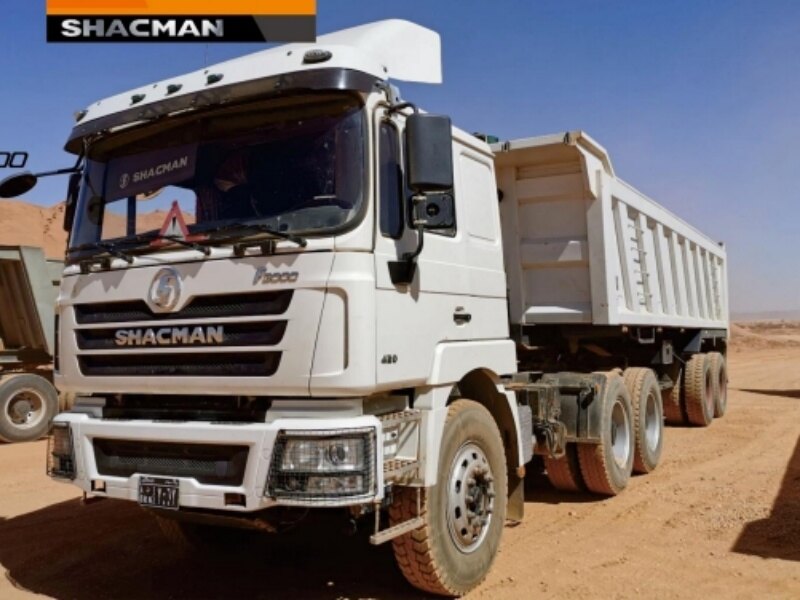

SHACMAN F3000 6x4 Tractor Head Truck 380HP for Trailer Logistics view 1
SHACMAN Tractor Truck
Edit

SHACMAN F3000 6x4 Tractor Head Truck 380HP for Trailer Logistics

Model: F3000 380 Tractor

Reliable SHACMAN F3000 6x4 tractor head truck with 380HP WEICHAI engine and FAST gearbox. The most popular SHACMAN prime mover for trailer logistics, container transport, and regional freight operations.

Key Technical Specifications

Loading Capacity

45 Ton (GCW)

Axle Configuration

6x4

Model

F3000 380 Tractor

Certification

ISO 9001 & CE

Commercial Information

Minimum Order:1 unit
Delivery Time:15-25 working days after deposit
Payment Terms:T/T (30% deposit, 70% before shipment) or L/C at sight
Warranty:12 months or 100,000 km

Product Overview

The SHACMAN F3000 6x4 Tractor Head Truck is the workhorse of SHACMAN's tractor lineup. With 380HP WEICHAI engine, FAST gearbox, and MAN-technology axles, this prime mover delivers reliable performance for trailer logistics and freight transport at an excellent value. The WEICHAI WP10.380E32 engine produces 380 HP and 1600 Nm of torque, providing ample power for 45-ton GCW operations on highways and regional roads. The BOSCH common rail injection system ensures precise fuel delivery and efficient combustion. The FAST 12JSD160T 12-speed manual transmission provides a wide gear ratio spread for efficient highway cruising and hill climbing. The double intermediate shaft design with synchronizers ensures smooth gear changes under load. The F3000 cabin based on MAN F2000 technology provides a comfortable driving environment with air suspension seat, power steering, and optional air conditioning. The cabin is available in day cab and sleeper configurations to match operational needs. The MAN-technology HG13 rear axle with 13-ton capacity provides reliable power transfer with proven durability. The 6x4 configuration ensures excellent traction for heavy loads on various road conditions. With over 200,000 F3000 units sold globally, this tractor truck has established an unmatched reputation for reliability and value. Spare parts are available through SHACMAN's dealer network spanning 80+ countries. The F3000 tractor is the ideal choice for fleet operators and owner-operators seeking a reliable, fuel-efficient prime mover with low operating costs and global parts support.

Complete Technical Specifications

Technical Specifications

EngineWEICHAI WP10.380E32, 9.726L, 6-cylinder turbo diesel
Engine Power380 HP (279 kW) at 1900 rpm
Max Torque1600 Nm at 1200-1500 rpm
TransmissionFAST 12JSD160T, 12F+2R manual
Drive System6x4, rear wheel drive
Front AxleHG9, 9000 kg
Rear AxleMAN-technology HG13, 13000 kg
Fifth Wheel50mm or 90mm optional
Suspension (Front)10 leaf springs, 90x14mm
Suspension (Rear)12 leaf springs, 90x16mm
Tires12.00R20 wire tires, 6+1
Braking SystemWABCO ABS, dual-circuit air brake
Fuel Tank380L aluminum alloy
CabinF3000, day cab or sleeper optional
Overall Dimensions6800x2496x3100 mm
Wheelbase3225+1350 mm
Curb Weight8800 kg
GCW45000 kg
Emission StandardEuro 3 / Euro 5
Max Speed85 km/h

Frequently Asked Questions (FAQ)

Q1What is the difference between F3000 and X3000 tractor trucks?

The X3000 features a more powerful WP12 engine (430HP vs 380HP), premium X3000 cabin with 4-point air suspension, and higher GCW rating (55 vs 45 tons). The F3000 offers better value for operations not requiring maximum power.

Q2What fifth wheel height is standard?

The standard fifth wheel height is approximately 1,310mm from ground (unloaded). This is compatible with most international semi trailers. Custom mounting heights are available for specific trailer coupling requirements.

Q3How often should the transmission oil be changed?

FAST transmission oil should be changed every 80,000 km under normal conditions, or every 40,000 km under severe conditions (heavy loads, dusty environment, frequent stop-start). Use GL-5 grade 85W-90 gear oil.

Q4Can this tractor handle 40ft containers?

Yes. The F3000 6x4 tractor with 45-ton GCW can handle fully loaded 40ft containers (max gross weight 30.5 tons). The tractor curb weight of 8,800 kg leaves approximately 27 tons for the trailer and cargo, which is sufficient for most container operations.
