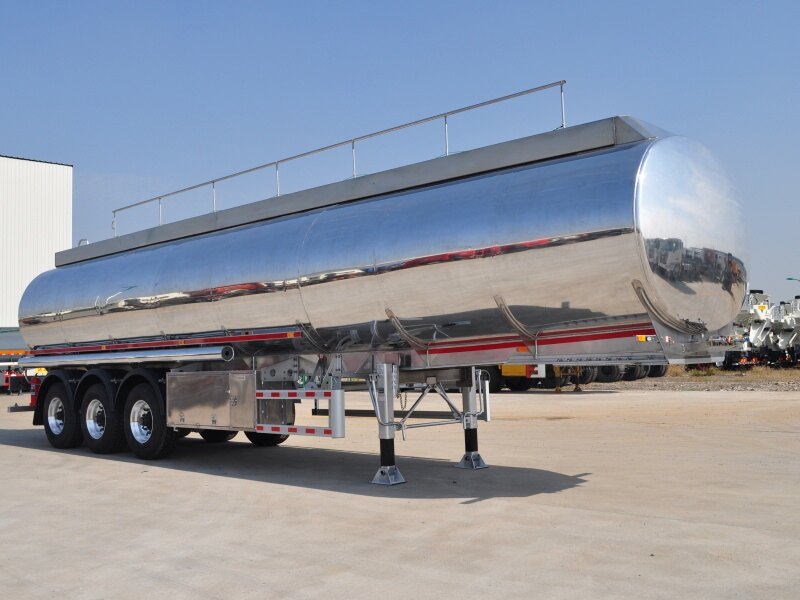

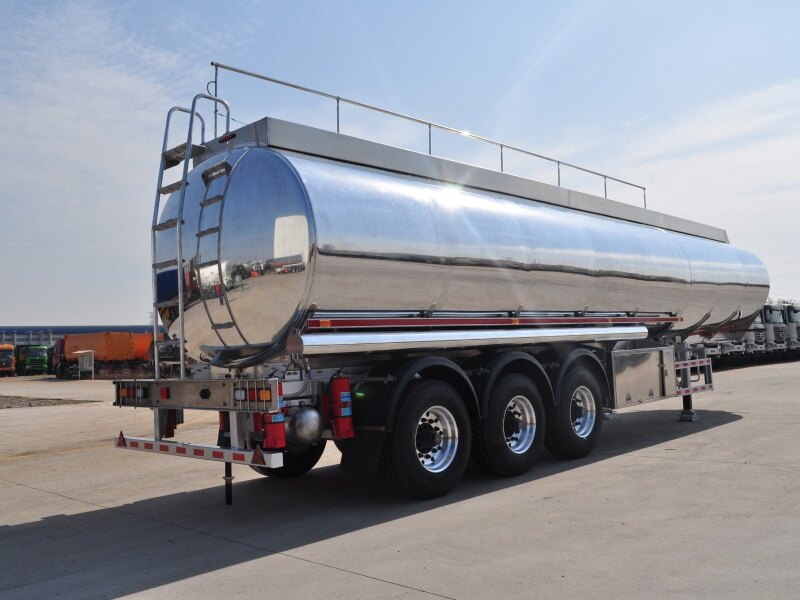

Stainless Steel Chemical Liquid Tanker Semi Trailer for Crude Oil
Model: KYD-ST35
Premium stainless steel tanker for chemical liquids, crude oil, and corrosive materials. 316L food-grade stainless construction ensures product purity and easy cleaning between loads.
Key Technical Specifications
40-60 Tons
3 Axles
KYD-ST35
ISO 9001 & CE
Commercial Information
Product Overview
Complete Technical Specifications
General Specifications
| Model | KYD-ST35 |
| Configuration | 3 Axle Stainless Tanker |
| Total Capacity | 35,000 Liters |
| Tank Material | 316L Stainless Steel |
| Surface Finish | Ra <= 0.8um Polished |
| Design Code | ASME Section VIII |
Tank Construction
| Shell Thickness | 5 mm Stainless |
| Head Type | Ellipsoidal Dished |
| Internal Baffles | Stainless Steel Dividers |
| Welding Process | TIG with Back Purging |
| Post-Treatment | Pickling & Passivation |
Chemical Compatibility
| Acids | Suitable for Most Organic Acids |
| Alkalis | Excellent Resistance |
| Solvents | Compatible with Hydrocarbons |
| Food Grade | FDA Compliant Surface |
Cleaning Systems
| CIP Ready | Spray Ball Mounts Standard |
| Drainage | Full Slope to Rear Outlet |
| Access | Large Manhole Top Entry |
| Inspection | Visual Internal Certification |
Safety Features
| Pressure Relief | Vacuum-Pressure Vent |
| Explosion Proof | ATEX Electrical Option |
| Nitrogen Blanket | Inert Gas System Ready |
| Emergency Valve | Stainless Remote Actuated |
Axle & Suspension
| Suspension | Air Bag Chemical Resistant |
| Brake System | ABS |
| Coating | Zinc-Nickel Corrosion Protection |
Dimensions
| Overall Length | 10,800 mm |
| Overall Width | 2,480 mm |
| Overall Height | 3,100 mm |
Certifications
| Material Cert | EN 10204 3.1 Stainless |
| Pressure Test | Hydrostatic Certified |
| Surface Analysis | Ra Roughness Certificate |
Key Features & Advantages
316L Stainless Steel Construction
Premium grade stainless resists corrosive chemicals and maintains product purity
Polished Interior Finish
Mirror-smooth Ra <= 0.8um surface enables thorough cleaning and inspection
Multi-Cargo Versatility
Safe transport of chemicals, food products, and pharmaceuticals in same vessel
CIP Cleaning Ready
Clean-in-place spray ball mounts minimize downtime between loads
Pickled & Passivated
Post-fabrication treatment maximizes natural corrosion resistance of stainless steel
Applications & Use Cases
Crude Oil with High Sulfur
Resists sour crude corrosion that damages carbon steel tanks
Food-Grade Liquid Transport
Edible oils, fruit juices, wine, and liquid sweeteners
Chemical Manufacturing
Acids, alkalis, solvents, and intermediate compounds
Pharmaceutical Logistics
High-purity ingredients and process liquids
Frequently Asked Questions (FAQ)
Q1What chemicals can this tanker carry?
Q2How do you clean between different cargoes?
Q3Is this suitable for food products?
Q4Can the tanker be heated?
