Container Flatbed Semi Trailers

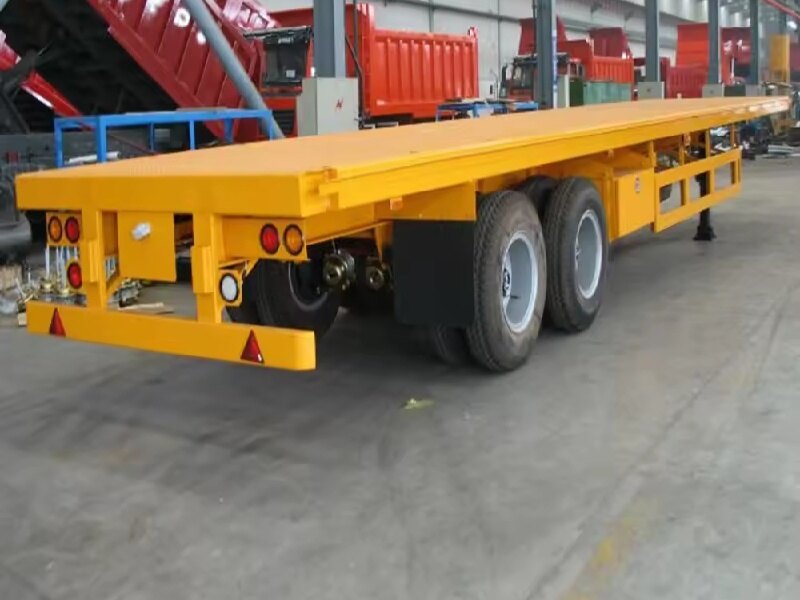

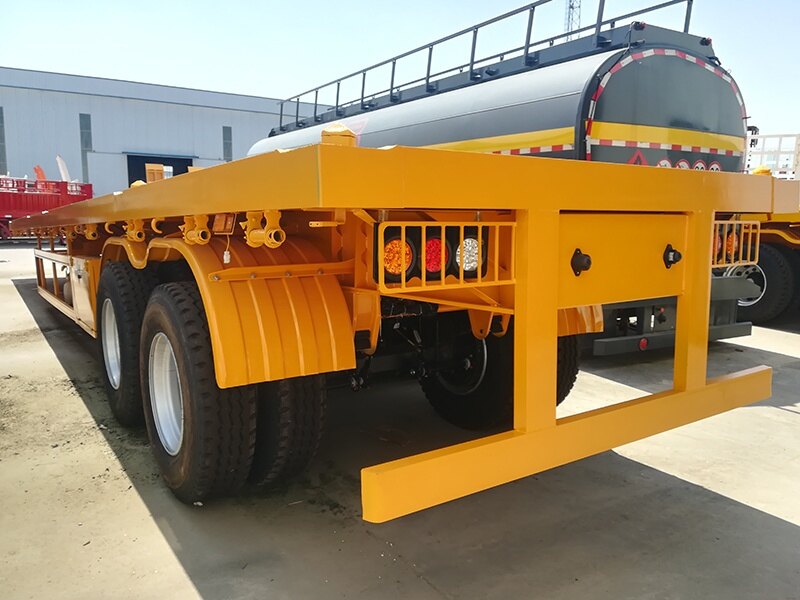

Edit2 Axle 20ft Flatbed Container Trailer for Short Haul
Model: KYD-FB20-2A
Compact 2 axle 20ft flatbed trailer perfect for regional distribution and short-distance container transport. Lightweight design improves fuel efficiency.
Key Technical Specifications
Loading Capacity
30-40 tons
Axle Configuration
2 axles
Model
KYD-FB20-2A
Certification
ISO 9001 & CE
Commercial Information
Minimum Order:1 unit
Delivery Time:12-20 working days
Payment Terms:T/T
Warranty:12 months
Product Overview
Optimized for short-haul and regional logistics operations, this 2 axle flatbed trailer offers cost-effective container transport solution. The lighter tare weight allows higher payload within legal weight limits.
Operational Benefits:
• Compact size for urban and restricted route access
• Lower fuel consumption due to reduced weight
• Easy maneuverability in tight spaces
• Cost-effective maintenance with standard components
• Suitable for 20ft containers and general cargo
Best For: Port drayage operations, regional distribution networks, warehouse shuttle services, domestic container moves, last-mile logistics support.
Complete Technical Specifications
Technical Specifications
| Overall Dimensions | 7500 x 2500 x 1450 mm |
| Payload Capacity | 40 tons |
| Main Beam | Q345B steel, 400mm height |
| Axle Configuration | 2 x 13T |
| Suspension | Mechanical leaf spring |
| Braking System | Dual-line pneumatic braking |
| Landing Gear | 24T standard |
| King Pin | 2" bolt-in type |
| Floor | checkered steel plate |
| Twist Locks | 8 sets ISO standard for 20ft container |
| Tires | 12R22.5 tubeless radial, 8 pcs |
| Electrical System | 24V LED lighting |
| Paint | Epoxy primer + polyurethane topcoat |
| Container Size | 20ft ISO standard |
Key Features & Advantages
Compact size for urban and restricted route access
Lower fuel consumption due to reduced tare weight
Easy maneuverability in tight spaces and depots
Cost-effective maintenance with standard components
8 ISO twist locks for secure 20ft container fastening
Lightweight design maximizes legal payload capacity
Applications & Use Cases
Port drayage operations and short-distance moves
Regional distribution network logistics
Warehouse shuttle services and transfers
Domestic container moves between facilities
Last-mile logistics support and delivery
Frequently Asked Questions (FAQ)
Q1What container size does this trailer support?
This trailer is designed primarily for 20ft ISO standard containers with 8 twist lock positions. It can also carry general cargo on the flat deck.
Q2What is the advantage of 2 axle vs 3 axle?
The 2 axle configuration offers lower tare weight, better fuel efficiency, lower purchase cost, and easier maneuverability - ideal for short-haul and regional operations.
Q3Is it suitable for highway use?
Yes, the trailer meets highway safety standards and is suitable for both urban and highway operations within legal weight limits.
Q4What is the delivery time?
Standard delivery time is 12-20 working days after deposit confirmation, faster than larger trailers due to simpler construction.
