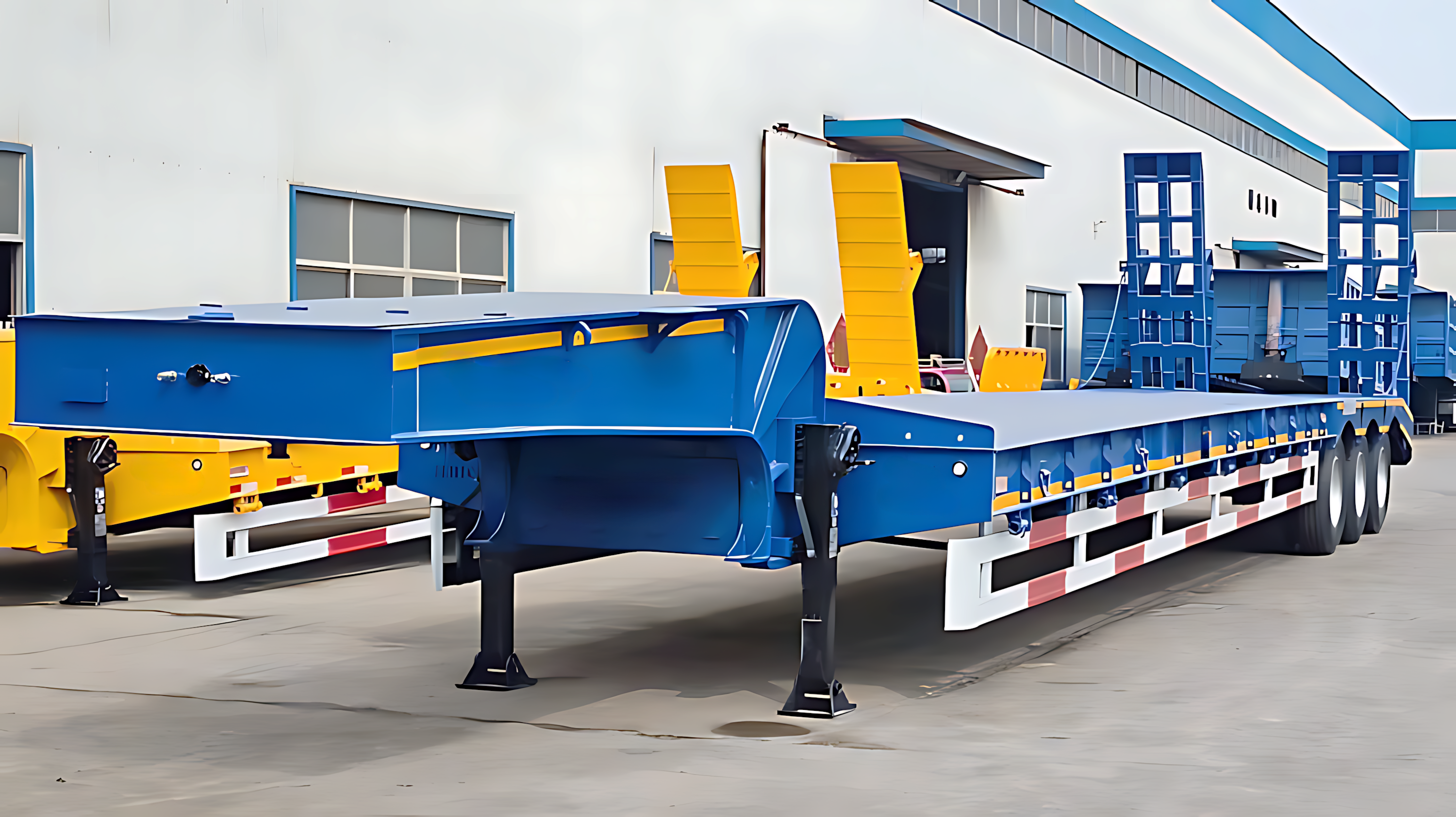

3 Axle 60 Ton Lowbed Semi Trailer for Excavator and Heavy Equipment
Model: KYD-LB60-3A
Professional 3 axle 60 ton lowbed semi trailer designed for excavator, bulldozer, and heavy equipment transport. Low deck height ensures safe clearance for tall machinery.
Key Technical Specifications
40-60 tons
3 axles
KYD-LB60-3A
ISO 9001 & CE
Commercial Information
Product Overview
This heavy-duty lowbed semi trailer is engineered for safe and efficient transportation of construction machinery, industrial equipment, and oversized loads. The lowered deck design maximizes legal height clearance while maintaining exceptional structural strength.
Key Features:
• Deck height: 1.15m (vs 1.5m for standard flatbeds) for superior clearance
• Reinforced gooseneck section for concentrated equipment loads
• Hydraulic detachable gooseneck option for drive-on/drive-off loading
• Heavy-duty mechanical or hydraulic ramps (optional)
• BPW/FUWA 13-ton axles with reliable braking system
• Multiple tie-down points along deck edges and gooseneck
Technical Specifications:
• Overall length: 12.5m deck space
• Deck width: 3.0m for wide equipment accommodation
• King pin: JOST 2" or 3.5" compatible with all tractors
• Landing gear: 28-ton two-speed JOST landing gear
• Suspension: Mechanical leaf spring or air suspension option
Applications:Excavator transport (20-45 ton class), bulldozer hauling, mobile crane logistics, generator set delivery, mining equipment relocation, agricultural machinery transport.
Certification:ISO 9001, CE available. Customization includes different deck lengths, ramp configurations, extendable rear sections, and multi-axle setups.
Complete Technical Specifications
Technical Specifications
| deck height | 1150mm |
| deck length | 12500mm |
| deck width | 3000mm |
| payload | 60 tons |
| kingpin | 2 inch or 3.5 inch |
| landing gear | 28T two-speed |
| suspension | Mechanical leaf spring / Air suspension optional |
| brake system | dual-line pneumatic |
| axles | 3x13-ton |
| tires | 12R22.5 x 12pcs |
| ramp type | Mechanical or Hydraulic optional |
| tie down points | 12 pairs along deck edges |
Key Features & Advantages
Low deck height 1.15m for superior height clearance
Reinforced gooseneck for concentrated equipment loads
Hydraulic detachable gooseneck option available
Multiple tie-down points for secure cargo restraint
13-ton axles with reliable braking
Compatible with all standard tractor units
Applications & Use Cases
Excavator transport (20-45 ton class)
Bulldozer hauling
Mobile crane logistics
Generator set delivery
Mining equipment relocation
Agricultural machinery transport
Frequently Asked Questions (FAQ)
Q1What is the deck height compared to standard flatbeds?
Q2Can it carry a 45-ton excavator?
Q3Are hydraulic ramps included as standard?
Q4What certifications are available?
