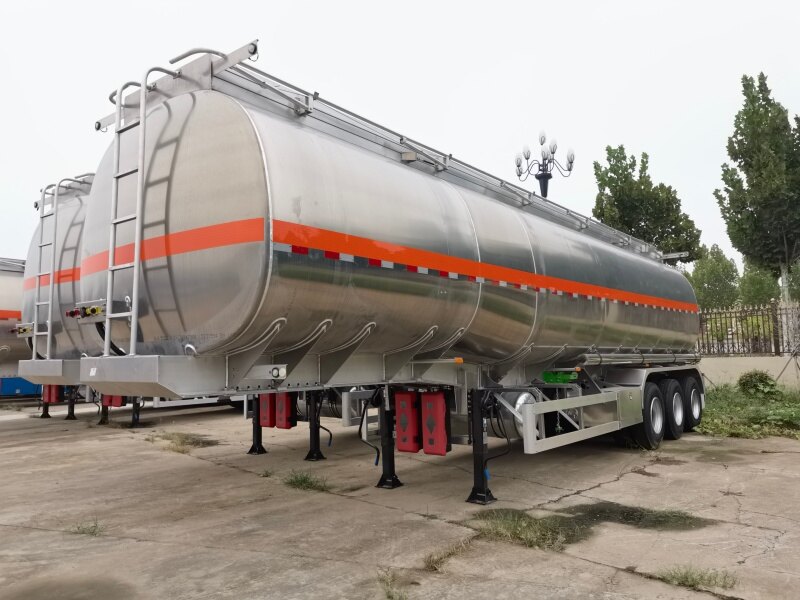

Aluminum Alloy Fuel Tanker Semi Trailer 50,000 Liters Capacity
Model: KYD-AT50
Lightweight aluminum alloy fuel tanker with 50,000 liter capacity. Superior corrosion resistance and increased payload from reduced tare weight. Ideal for corrosive fuels and coastal operations.
Key Technical Specifications
40-60 Tons
3 Axles
KYD-AT50
ISO 9001 & CE
Commercial Information
Product Overview
Complete Technical Specifications
General Specifications
| Model | KYD-AT50 |
| Configuration | 3 Axle Aluminum Tanker |
| Total Capacity | 50,000 Liters |
| Tank Material | 5083 Aluminum Alloy |
| Compartment Count | 3-4 Chambers |
| Design Life | 15+ Years |
Tank Construction
| Shell Thickness | 8 mm Aluminum |
| Head Type | Ellipsoidal Aluminum |
| Baffle Plates | Aluminum Anti-Surge |
| Welding Process | TIG Automated Welding |
| Surface Finish | Anodized Interior |
Weight Advantages
| Payload Capacity | 60 tons |
| Weight Savings | 1,500 kg vs Steel |
| Gross Weight | 41,000 kg |
Compartment Options
| Standard Layout | 17,000L + 17,000L + 16,000L |
| Alternative | 12,500L x 4 Compartments |
| Manhole Covers | Aluminum API Standard |
Axle & Suspension
| Axle Rating | 13 Tons x 3 |
| Suspension | Air Bag with ECU |
| Tire Specification | 385/65R22.5 Tubeless |
Dimensions
| Overall Length | 11,000 mm |
| Overall Width | 2,480 mm |
| Overall Height | 3,150 mm |
| Wheelbase | 7,200+1,350+1,350 mm |
Corrosion Resistance
| Salt Spray Test | ASTM B117 1000 Hours |
| Chemical Resistance | All Petroleum Products |
| Coating Required | None - Bare Aluminum |
Key Features & Advantages
5083 Aluminum Alloy Construction
Marine-grade alloy provides exceptional strength-to-weight ratio and corrosion resistance
1,500 kg Weight Advantage
Increased payload per trip delivers rapid ROI despite higher initial cost
Natural Corrosion Resistance
No rust, no internal coatings needed, ideal for biofuels and coastal climates
TIG Welded Integrity
Automated tungsten inert gas welding ensures perfect seam quality
Superior Resale Value
Aluminum tankers retain 40-50% higher residual value after 10 years
Applications & Use Cases
Coastal Fuel Distribution
Salt air environment where steel would rapidly corrode
Biofuel Transport
Ethanol and biodiesel that attack traditional steel tank coatings
High-Volume Long-Haul
Maximize legal payload over long distance routes
Premium Product Delivery
Aviation fuels and specialty products requiring absolute purity
Frequently Asked Questions (FAQ)
Q1Why choose aluminum over steel?
Q2Is aluminum strong enough for heavy loads?
Q3Can aluminum tankers carry all fuel types?
Q4What is the price difference vs steel?
